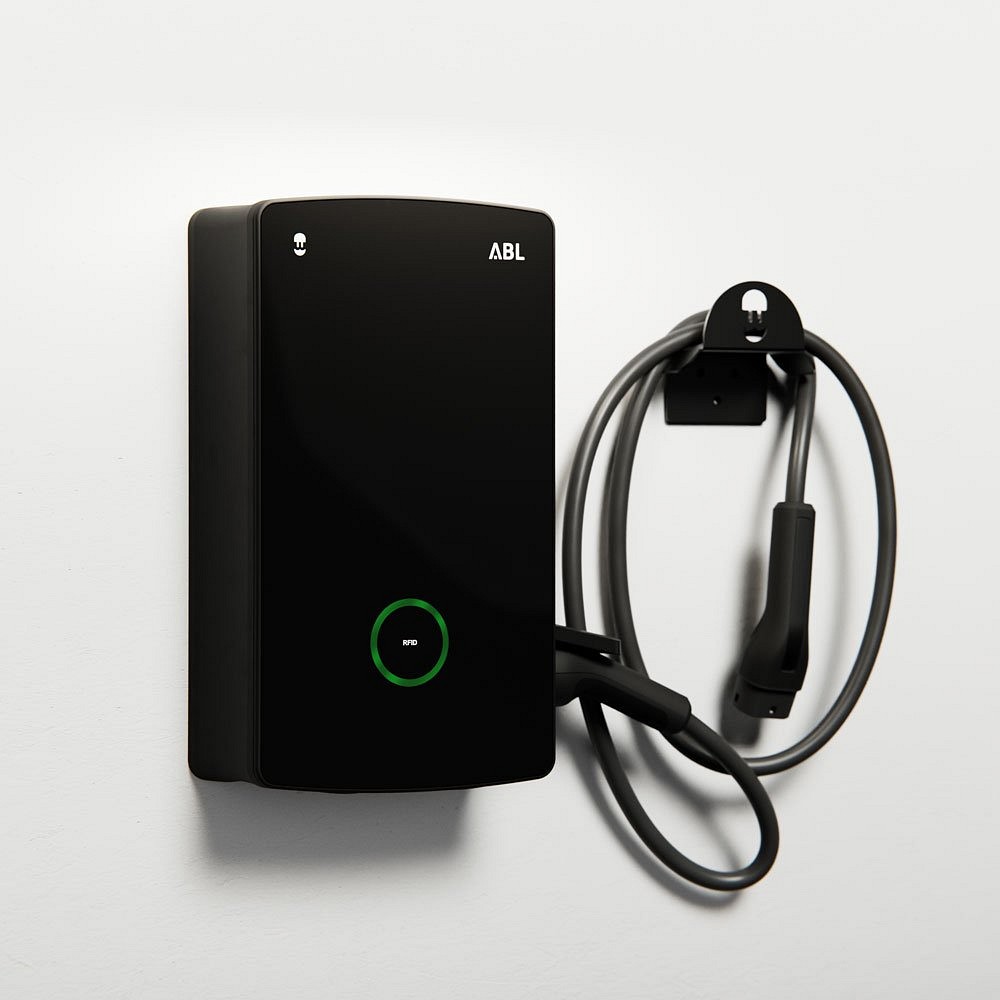

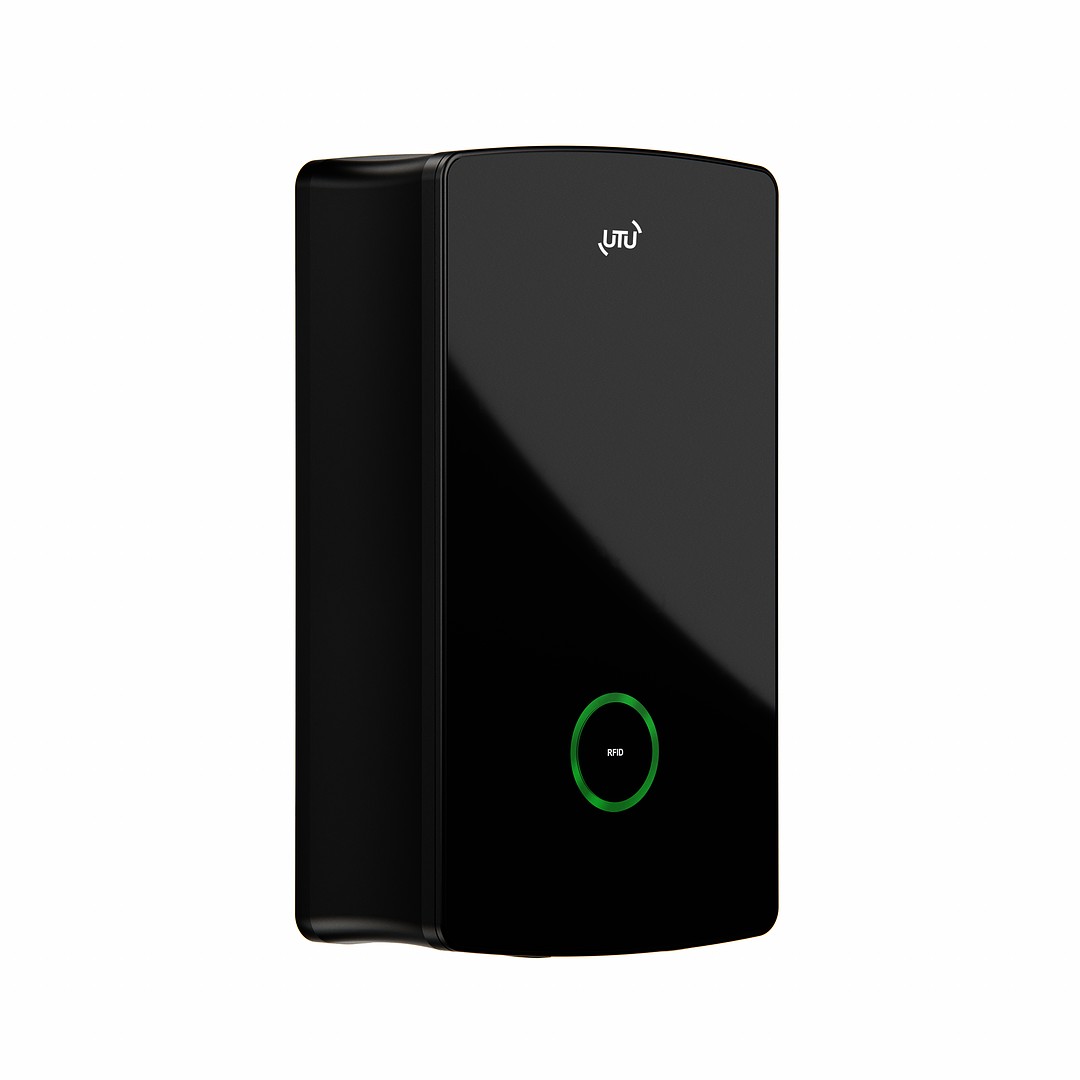

ABL uzlādes stacija 22kW
| Garums (mm) | 145 |
| Platums (mm) | 306.5 |
| Augstums (mm) | 516 |
| Installation side connection model | 3-phase |
| Input voltage | 400 V |
| Input voltage | 400 V |
| Frequency | 50 Hz |
| Nominal connection power | 22 kW |
| Number of charging units | 1 |
| Max. power per charging point | 22 kW |
| Width | 306.5 mm |
| Height | 516 mm |
| Depth | 145 mm |
| Mounting method | Other |
| Number of socket outlets Type 2 | 1 |
| With house connection box | Nē |
| Number of earth leakage circuit breakers type A | 1 |
| Charging cable permanently lockable at charging device | Jā |
| DC residual current detection | Jā |
| Contactor welding detection | Jā |
| With circuit breaker | Jā |
| Network-enabled as a master | Jā |
| Network-enabled as an extender | Nē |
| Networkable via LAN | Jā |
| Networkable via Wi-Fi | Jā |
| Long-Term Evolution (LTE) | Jā |
| Radio standard 5G | Nē |
| With energy meter | Jā |
| With key switch | Nē |
| With built-in RFID card reader | Jā |
| NFC (Near Field Communication) | Jā |
| Static load management integrated | Jā |
| Suitable for dynamic load management | Jā |
| OpenChargePointProtocoll (OCPP) version | 1.6 |
| Plug and charge (ISO 15118) | Jā |
| With display | Nē |
| Housing material | Plastic |
| Degree of protection (IP) | IP55 |
| Impact strength | IK10 |
| Compatible with Apple HomeKit | Nē |
| Compatible with Google Assistant | Nē |
| Compatible with Amazon Alexa | Nē |
| IFTTT support available | Jā |
| Operation and configuration by app | Jā |
| Export of charging logs | Jā |
| Connectable conductor cross section | 1.5 mm² |
| Connectable conductor cross section | 25 mm² |
| Backend included in delivery | Nē |
| With MID compliant energy meter | Jā |
| Calibration law compliant | Jā |
| Iepakojuma izmērs 1 (MOQ) | 1 |
| Iepakojuma izmērs 1 garums (mm) | 252 |
| Iepakojuma izmērs 1 platums (mm) | 400 |
| Iepakojuma izmērs 1 augstums (mm) | 600 |
| Iepakojuma izmērs 1 svars gross (kg) | 10.7 |
| Iepakojuma izmērs 2 (palete) | 16 |
| Lietotāja rokasgrāmata (eng) | Lejupielādēt šeit |
| Tehniskais pielikums 1 (eng) | Lejupielādēt šeit |
