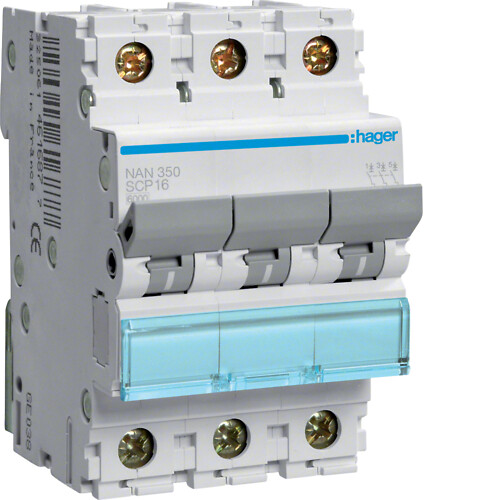

Selektīvais automātiskais slēdzis 3P 10kA SCP-50A 3M
| ETIM klase | EC000042 Miniature circuit breaker (MCB) |
| Built-in depth | 70 mm |
| Release characteristic | Other |
| Number of poles (total) | 3 |
| Number of protected poles | 3 |
| Rated current | 50 A |
| Rated voltage | 415 V |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 6 kV |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 10 kA |
| Voltage type | AC |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 10 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 30 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | 15 kA |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Flush-mounted installation | Jā |
| Concurrently switching neutral conductor | Nē |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Additional equipment possible | Jā |
| Width in number of modular spacings | 3 |
| Degree of protection (IP) | IP20 |
| Ambient temperature during operating | -25 °C |
| Ambient temperature during operating | 70 °C |
| Connectable conductor cross section multi-wired | 1 mm² |
| Connectable conductor cross section multi-wired | 25 mm² |
| Connectable conductor cross section solid-core | 1 mm² |
| Connectable conductor cross section solid-core | 35 mm² |
| Explosion-proof | Nē |
| Iepakojuma izmērs 1 (MOQ) | 1 |
| CE atbilstības deklarācija | Lejupielādēt šeit |
