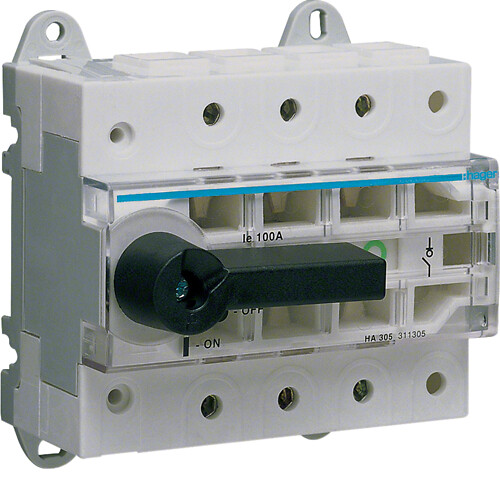

Koormuslüliti 3P, 100A, 6 moodulit

Name: Koormuslüliti 3P, 100A, 6 moodulit
Brand: Hager
SKU: 18805

Tootekood: HA305

Kaubamärk: Hager

GTIN: 3250613113056

Minimaalne pakendi suurus: 1 tükk

Koormuslüliti 3-pooluseline, nimivool 100 A, 6 moodulit. IP20 kaitseklass.

Version as main switch	Jah
Version as maintenance-/service switch	Jah
Version as safety switch	Jah
Version as emergency stop installation	Ei
Version as reversing switch	Ei
Number of switches	1
Max. rated operation voltage Ue AC	415 V
Rated operating voltage	380 V
Rated operating voltage	415 V
Rated permanent current Iu	100 A
Rated permanent current at AC-23, 400 V	63 A
Rated permanent current at AC-21, 400 V	100 A
Rated short-time withstand current lcw	2.5 kA
Rated operation power at AC-23, 400 V	28 kW
Switching power at 400 V	65 kW
Conditioned rated short-circuit current Iq	50 kA
Number of poles	3
Motor drive optional	Ei
Motor drive integrated	Ei
Voltage release optional	Ei
Device construction	Built-in device fixed built-in technique
Suitable for floor mounting	Jah
Suitable for front mounting 4-hole	Ei
Suitable for front mounting centre	Ei
Suitable for distribution board installation	Jah
Suitable for intermediate mounting	Ei
Colour control element	Black
Type of control element	Short thumb-grip
Interlockable	Jah
Type of electrical connection of main circuit	Screw connection
With pre-assembled cabling	Ei
Degree of protection (IP), front side	IP20
Degree of protection (NEMA)	Other
Width	108 mm
Height	86.5 mm
Depth	90 mm
Width in number of modular spacings	6
