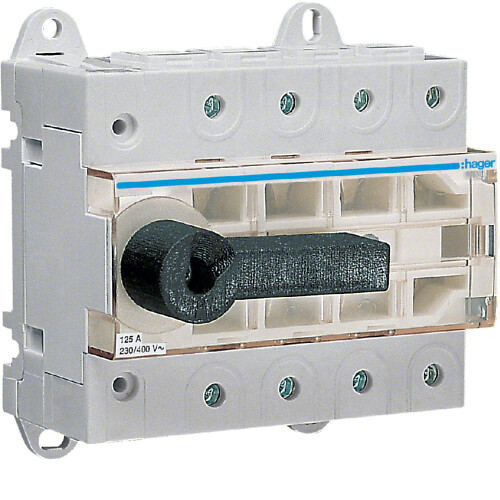

Koormuslüliti 3P, 125A, 6 moodulit
| Pikkus (mm) | 86 |
| Laius (mm) | 108 |
| Kõrgus (mm) | 116 |
| Version as main switch | Jah |
| Version as maintenance-/service switch | Jah |
| Version as safety switch | Jah |
| Version as emergency stop installation | Ei |
| Version as reversing switch | Ei |
| Number of switches | 1 |
| Max. rated operation voltage Ue AC | 415 V |
| Rated operating voltage | 380 V |
| Rated operating voltage | 415 V |
| Rated permanent current Iu | 125 A |
| Rated permanent current at AC-23, 400 V | 63 A |
| Rated permanent current at AC-21, 400 V | 125 A |
| Rated short-time withstand current lcw | 2.5 kA |
| Rated operation power at AC-23, 400 V | 28 kW |
| Switching power at 400 V | 82 kW |
| Conditioned rated short-circuit current Iq | 50 kA |
| Number of poles | 3 |
| Motor drive optional | Ei |
| Motor drive integrated | Ei |
| Voltage release optional | Ei |
| Device construction | Built-in device fixed built-in technique |
| Suitable for floor mounting | Jah |
| Suitable for front mounting 4-hole | Ei |
| Suitable for front mounting centre | Ei |
| Suitable for distribution board installation | Jah |
| Suitable for intermediate mounting | Ei |
| Colour control element | Black |
| Interlockable | Jah |
| Degree of protection (IP), front side | IP20 |
| Pakendi suurus 1 (MOQ) | 1 |
| Pakendi suurus 2 (pakk) | 1 |
| Pakendi suurus 2 pikkus (mm) | 130 |
| Pakendi suurus 2 laius (mm) | 115 |
| Pakendi suurus 2 kõrgus (mm) | 87 |
| Pakendi suurus 2 brutokaal (kg) | 0.715 |
| Pakendi suurus 3 (ülekaal) | 16 |
| Pakendi suurus 3 pikkus (mm) | 360 |
| Pakendi suurus 3 laius (mm) | 315 |
| Pakendi suurus 3 kõrgus (mm) | 220 |
| Pakendi suurus 3 brutokaal (kg) | 11.82 |
| Pakendi suurus 4 (kaubaalus) | 288 |
| Pakendi suurus 4 pikkus (mm) | 1200 |
| Pakendi suurus 4 laius (mm) | 800 |
| Pakendi suurus 4 kõrgus (mm) | 750 |
| CE vastavusdeklaratsioon | Lae alla siit |
