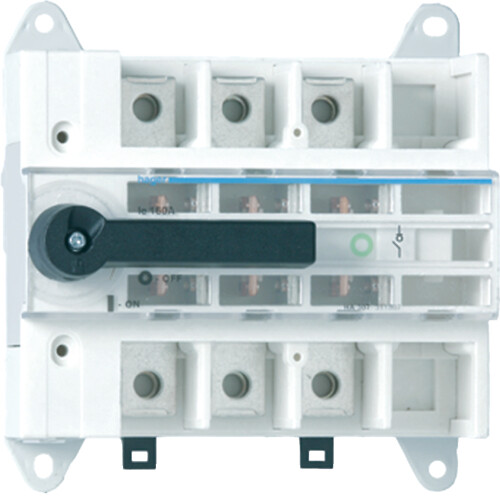

Koormuslüliti 3P, 160A, 8,5 moodulit
| Pikkus (mm) | 90 |
| Laius (mm) | 142 |
| Kõrgus (mm) | 150 |
| Version as main switch | Jah |
| Version as maintenance-/service switch | Jah |
| Version as safety switch | Jah |
| Version as emergency stop installation | Ei |
| Version as reversing switch | Ei |
| Number of switches | 1 |
| Max. rated operation voltage Ue AC | 415 V |
| Rated operating voltage | 380 V |
| Rated operating voltage | 415 V |
| Rated permanent current Iu | 160 A |
| Rated permanent current at AC-23, 400 V | 160 A |
| Rated permanent current at AC-21, 400 V | 160 A |
| Rated short-time withstand current lcw | 4 kA |
| Rated operation power at AC-23, 400 V | 72 kW |
| Switching power at 400 V | 105 kW |
| Conditioned rated short-circuit current Iq | 50 kA |
| Number of poles | 3 |
| Motor drive optional | Ei |
| Motor drive integrated | Ei |
| Voltage release optional | Ei |
| Device construction | Built-in device fixed built-in technique |
| Suitable for floor mounting | Jah |
| Suitable for front mounting 4-hole | Ei |
| Suitable for front mounting centre | Ei |
| Suitable for distribution board installation | Jah |
| Suitable for intermediate mounting | Ei |
| Colour control element | Black |
| Type of control element | Short thumb-grip |
| Interlockable | Jah |
| Type of electrical connection of main circuit | Cable clamp |
| With pre-assembled cabling | Ei |
| Degree of protection (IP), front side | IP00 |
| Degree of protection (NEMA) | Other |
| Width | 142 mm |
| Height | 82.5 mm |
| Depth | 136 mm |
| Width in number of modular spacings | 8.5 |
| Pakendi suurus 1 (MOQ) | 1 |
| Pakendi suurus 2 (pakk) | 1 |
| Pakendi suurus 2 pikkus (mm) | 170 |
| Pakendi suurus 2 laius (mm) | 155 |
| Pakendi suurus 2 kõrgus (mm) | 95 |
| Pakendi suurus 2 brutokaal (kg) | 1.16 |
| Pakendi suurus 3 (ülekaal) | 6 |
| Pakendi suurus 3 pikkus (mm) | 360 |
| Pakendi suurus 3 laius (mm) | 315 |
| Pakendi suurus 3 kõrgus (mm) | 220 |
| Pakendi suurus 3 brutokaal (kg) | 7.34 |
| Pakendi suurus 4 (kaubaalus) | 144 |
| Pakendi suurus 4 pikkus (mm) | 1200 |
| Pakendi suurus 4 laius (mm) | 800 |
| Pakendi suurus 4 kõrgus (mm) | 1030 |
| CE vastavusdeklaratsioon | Lae alla siit |
