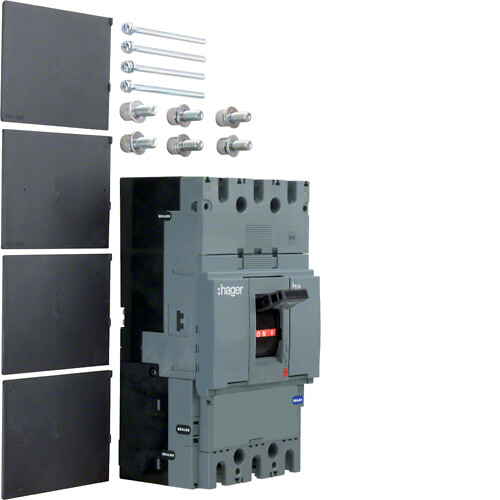

Koormuslüliti h630, 3P, 400A
| Kaal (neto) | 4.4 |
| ETIM klass | EC000216 Switch disconnector |
| Version as main switch | Jah |
| Version as maintenance-/service switch | Jah |
| Version as safety switch | Jah |
| Version as emergency stop installation | Ei |
| Version as reversing switch | Ei |
| Number of switches | 1 |
| Max. rated operation voltage Ue AC | 690 V |
| Rated operating voltage | 220 V |
| Rated operating voltage | 690 V |
| Rated permanent current Iu | 400 A |
| Rated permanent current at AC-21, 400 V | 400 A |
| Rated short-time withstand current lcw | 5 kA |
| Rated operation power at AC-23, 400 V | 180 kW |
| Switching power at 400 V | 263 kW |
| Number of poles | 3 |
| Motor drive optional | Jah |
| Motor drive integrated | Ei |
| Voltage release optional | Jah |
| Device construction | Built-in device fixed built-in technique |
| Suitable for floor mounting | Jah |
| Suitable for front mounting 4-hole | Ei |
| Suitable for front mounting centre | Ei |
| Suitable for distribution board installation | Jah |
| Suitable for intermediate mounting | Ei |
| Colour control element | Black |
| Type of control element | Toggle |
| Interlockable | Jah |
| Type of electrical connection of main circuit | Cable clamp |
| Degree of protection (IP), front side | IP40 |
| Degree of protection (NEMA) | Other |
| Pakendi suurus 1 (MOQ) | 1 |
| Pakendi suurus 1 pikkus (mm) | 260 |
| Pakendi suurus 1 laius (mm) | 140 |
| Pakendi suurus 1 kõrgus (mm) | 140 |
| Pakendi suurus 1 brutokaal (kg) | 5 |
| Pakendi suurus 4 (kaubaalus) | 100 |
| Pakendi suurus 4 pikkus (mm) | 1200 |
| Pakendi suurus 4 laius (mm) | 800 |
| Kasutusjuhend (eng) | Lae alla siit |
| CE vastavusdeklaratsioon | Lae alla siit |
| Üldine tehniliste andmete fail | Lae alla siit |
