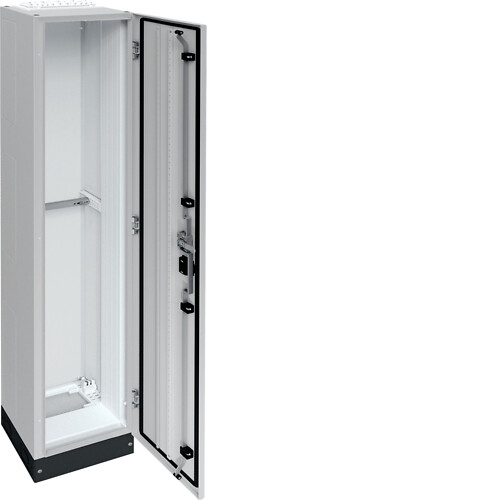

Tērauda korpuss, Univers, 1950x300x275 mm
| ETIM klase | EC002503 Explosion proof enclosure/housing |
| Mounting method | Floor installation |
| Type of cover | Door |
| Cover model | Closed |
| Type of door | Single |
| Transparent cover/door | Nē |
| With lock | Nē |
| Nominal current (In) | 800 A |
| Height | 1950 mm |
| Width | 300 mm |
| Depth | 275 mm |
| Inner depth | 275 mm |
| Material plate thickness cabinet | 1.5 mm |
| Material plate thickness door/cover | 1.5 mm |
| Colour | Grey |
| RAL-number | 7035 |
| Number of modules | 144 |
| Number of rows | 12 |
| Width in number of modular spacings | 24 |
| Number of openings for flange plates | 2 |
| Extension possible | Jā |
| Number of conduit inlets | 2 |
| Housing material | Steel |
| Surface protection | Powder coating |
| With mounting plate | Nē |
| Suitable for outdoor use | Nē |
| Suitable for lightning protection | Nē |
| Degree of protection (IP) | IP55 |
| Protection class | II |
| Impact strength | IK10 |
| Circuit integrity | None |
| Cover with overpressure release | Nē |
| Iepakojuma izmērs 1 (MOQ) | 1 |
| Iepakojuma izmērs 2 (palete) | 6 |
| CE atbilstības deklarācija | Lejupielādēt šeit |
